Wave Channel 3D

Wave Channel 3D
Built by Ricardo idea from JR & Aloakdutt from indieTrades Jan. 2010

This indicator is very easy to build. We utilize Moving Averages with a set multiplier and an offset. Specially we try to use Fibonacci sequence series numbers (1, 2, 3, 5, 8, 13, 21, 34, 55, 89, 144...) as time space and multiplier (default 89, 8). Also included is Donchian Channel to locate strong trends and possible future support - resistance.

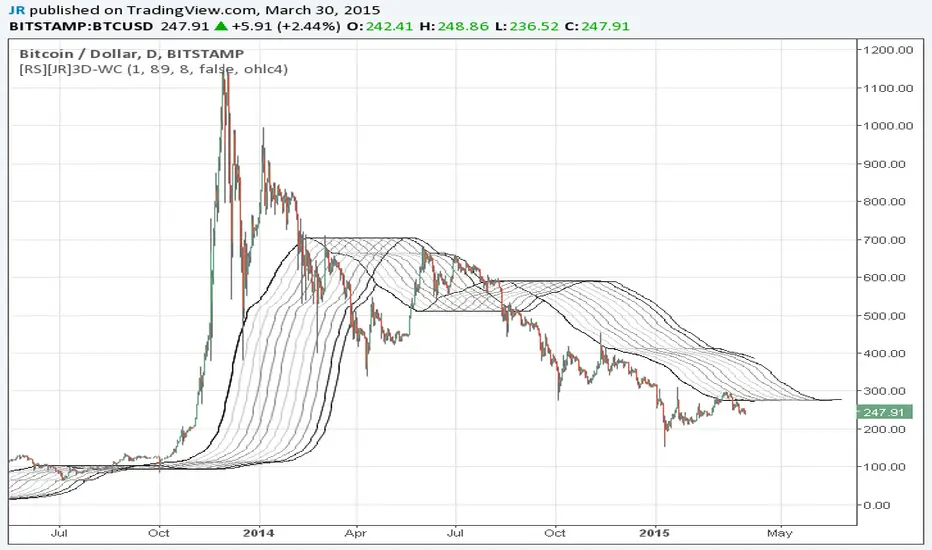

Examples of support/resistance on chart.


Dominant Price Trends


Future Support Resistance


Comparing Fibonacci Series Time Space - Multiplier


When Comparing make note of confluence support/resistance showing up with Fibonacci Series
Example uses DC

When Comparing make note of confluence support/resistance showing up with Fibonacci Series
Example without DC / Smooth MA
开源脚本

本着真正的TradingView精神,该脚本的作者将其开源发布,因此交易者可以理解和验证它。为作者加油! 您可以免费使用它,但是在发布中重复使用此代码受网站规则的约束。您可以收藏它以在图表上使用。

想在图表上使用此脚本?
study(title="3D-Wave Channel", shorttitle="3D-WC", overlay=true)
timespace = input(1)
smooth = input(89)
offsetMultiplier=input(8)
useDonchianAverage = input(false)
src = input(ohlc4)
ma = useDonchianAverage ? avg(highest(smooth),lowest(smooth)) : ema(src, smooth)
plot(ma[0], color=black, offset=offsetMultiplier*01)
plot(ma[timespace*01], color=silver, offset=offsetMultiplier*02)
plot(ma[timespace*02], color=silver, offset=offsetMultiplier*03)
plot(ma[timespace*03], color=gray, offset=offsetMultiplier*04)
plot(ma[timespace*04], color=gray, offset=offsetMultiplier*05)
plot(ma[timespace*05], color=gray, offset=offsetMultiplier*06)
plot(ma[timespace*06], color=silver, offset=offsetMultiplier*07)
plot(ma[timespace*07], color=silver, offset=offsetMultiplier*08)
plot(ma[timespace*08], color=gray, offset=offsetMultiplier*09)
plot(ma[timespace*09], color=gray, offset=offsetMultiplier*10)
plot(ma[timespace*10], color=black, offset=offsetMultiplier*11)

max_ma()=>max(ma[timespace*10],max(ma[timespace*9],max(ma[timespace*8],max(ma[timespace*7],max(ma[timespace*6],max(ma[timespace*5],max(ma[timespace*4],max(ma[timespace*3],max(ma[timespace*2],max(ma[timespace*1], ma))))))))))
min_ma()=>min(ma[timespace*10],min(ma[timespace*9],min(ma[timespace*8],min(ma[timespace*7],min(ma[timespace*6],min(ma[timespace*5],min(ma[timespace*4],min(ma[timespace*3],min(ma[timespace*2],min(ma[timespace*1], ma))))))))))

top = highest(max_ma(), smooth)
bot = lowest(min_ma(), smooth)

plot(top, color=black, offset=offsetMultiplier)
plot(bot, color=black, offset=offsetMultiplier)

评论

Thank you for sharing this interesting idea. The indicator initially seems to be really great based from the screenshot, but when I tested the signals they are lagging extremely behind the price movement. Even with very fast settings like smooth input(5), offsetMultiplier input(1) I could not find anything I would find useful in actual day-trading.

Don't get me wrong. I think this indicator is great when you analyze a new symbol for the very first time. It is very good to see the overall trend direction of recent weeks; to get an overall feeling where the market was headed recently.
+5 回复
Thanks for that feedback ChartArt. Have explored all the features this indicator might provide. Current and future Support/Resistance , Trend Breakouts and more?
+4 回复
ChartArt QuantitativeExhaustion
My setting in action. Useful to see the overall strongest recent trend direction (and yes, also the major past support/resistance zones).

+3 回复
ChartArt ChartArt
Period 4 smoothed on weekly SPY chart. If only trading would be always that easy :D

+3 回复
Looks even better with HA.
+4 回复
You should also compare longer time series and multipliers. I picked Fibonacci Series, showing how in the example above. More support/resistance folds, higher probability of seeing those areas again displaying support/resistance.
+4 回复
Today maybe it would have been more accurate to use this indicator, my stop loss support was broken too early
+3 回复
sigmadict sigmadict
Green live VS Grey line
I MISSED THE POP
+3 回复
Using setting (1,50,4)
+3 回复
sigmadict sigmadict
We can verify with my the S/R I previously draw. It's not far from reality, I recommend to use it as a reference and validate with a line previous S/R more precisely.
+2 回复
