MTF TSL + RSI Dashboard

🚀 Catchy Headlines
The Ultimate Trend & Momentum Hub: MTF TSL + RSI Dashboard
Master the Waves: Professional Multi-Timeframe Trend Suite (v6)
All-in-One Market Visualizer: MTF Trend Stop Line & RSI Dynamics
1. OverviewThe MTF TSL + RSI Dashboard is a comprehensive technical analysis tool designed to bridge the gap between price action and momentum across multiple horizons. Built on Pine Script v6, this indicator provides a "birds-eye view" of the market, allowing traders to identify high-probability setups by aligning trends from 12 different timeframes on a single chart.

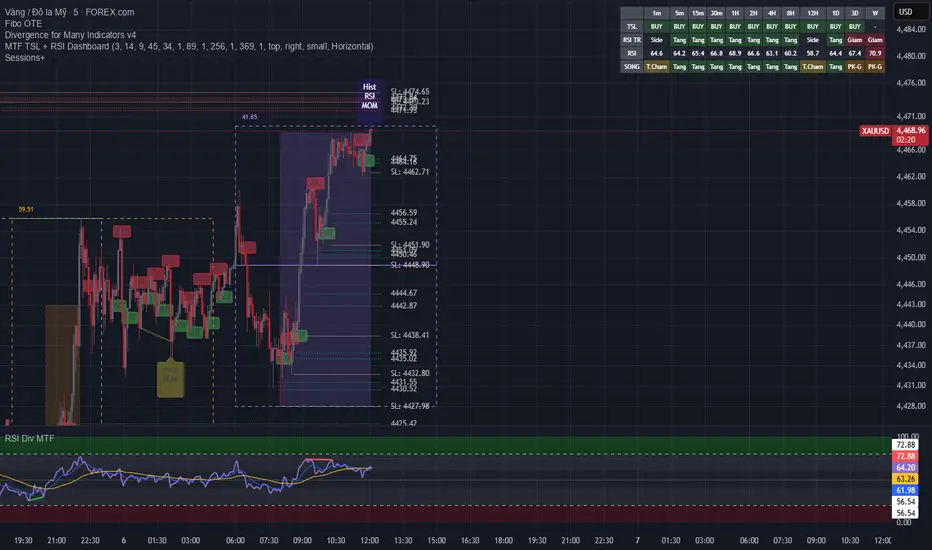

2. Core ComponentsA. Trend Stop Line (TSL)The TSL is the backbone of this system. Unlike static support levels, the TSL is a dynamic, swing-based indicator:Calculation: It tracks the highest highs and lowest lows over a user-defined Swing Period.Signal Logic: A BUY signal is triggered when the price crosses above the resistance level, and a SELL signal when it drops below the support level.Visuals: Includes on-chart labels and bar coloring for instant trend recognition.B. RSI Trend FilterStandard RSI (70/30) can be noisy. This script enhances RSI by comparing it against two moving averages (EMA and WMA):Bullish Momentum: RSI is above both EMA and WMA.Bearish Momentum: RSI is below both EMA and WMA.Neutral/Side: RSI is sandwiched between the averages, signaling a lack of direction.C. The Multi-Timeframe DashboardThe dashboard summarizes market health from 1m up to 1W.ColumnDescriptionTFThe specific timeframe (1m, 5m, 1h, 1D, etc.).TSLDisplays the current TSL signal (BUY/SELL).RSI TRDisplays the RSI Trend (Bullish/Bearish/Side).RSIThe raw RSI value (Color-coded: Green for Oversold, Red for Overbought).WAVEThe "Market Phase" – A fusion of TSL and RSI data.
3. Understanding the "WAVE" (Market Phases)The WAVE column is the most powerful feature, categorizing the market into specific states:Bullish/Bearish (Tang/Giam): Full alignment between Price Trend and Momentum.Slowing (T.Cham/G.Cham): The trend is still active, but momentum is fading.Divergence (PK-T/PK-G): Price and RSI are signaling opposite directions—high risk of a reversal.
4. How to Trade with this IndicatorStep 1: Check the Higher Timeframes (HTF)Look at the Dashboard for the 1H, 4H, and 1D rows. If they are all Green ("Tang"), you should prioritize Long positions.Step 2: Identify the EntryWait for a BUY signal on your local timeframe (e.g., 5m or 15m). Ensure the "WAVE" status is not showing "Slowing" or "Divergence."Step 3: Set Your Stop LossUse the plotted TSL line as your dynamic Stop Loss. If the price closes on the opposite side of the TSL, the trend has officially shifted, and it’s time to exit.
5. Key SettingsSwing Period: Adjust the TSL sensitivity (Default: 3).EMA Lines: Toggle four customizable EMAs (9, 21, 50, 200) for structural context.Dashboard Customization: Fully adjustable position (Top/Bottom/Left/Right), size, and orientation (Vertical/Horizontal).Alerts: Native TradingView alerts for Buy/Sell crossovers.
